SQL Console & Charts

The SQL panel runs read-only queries against the live DuckDB database — the same tables the collector writes. The panel ships with example queries (load-testing focused); pick one from the dropdown to get started.

Guard rules

• exactly one statement, SELECT/WITH/PRAGMA/DESCRIBE/SHOW/EXPLAIN only
• mutating keywords are blocklisted; -- comments are stripped before scanning
• a LIMIT is appended automatically if you forget one

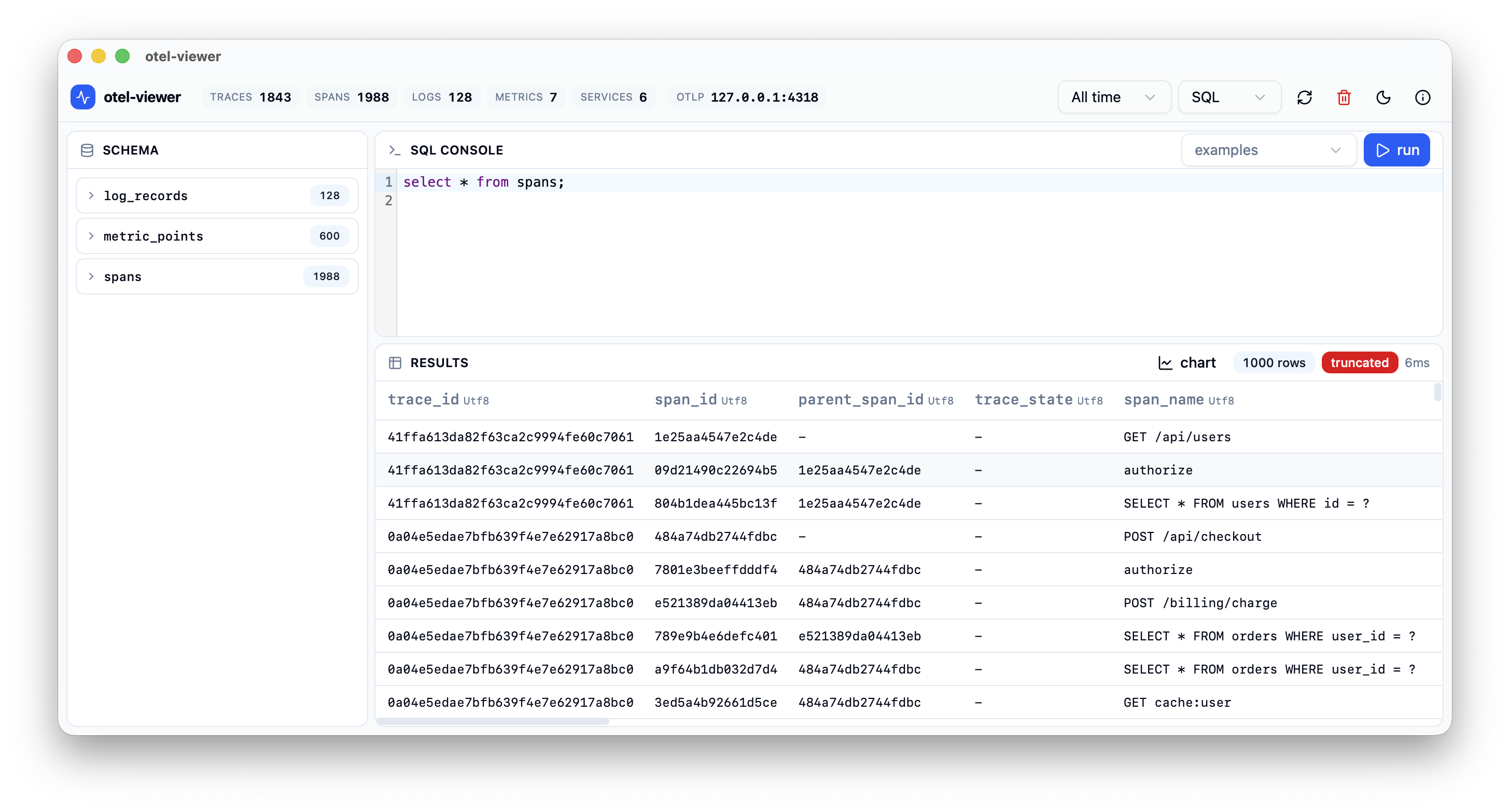

Auto line chart

When a result contains a time-like column plus numeric columns, a line chart is rendered above the table (toggle with the chart button):

• X axis — a column named like ts / time / timestamp / date, or any column whose values parse as epoch nanoseconds/microseconds/milliseconds/ seconds or ISO datetime strings.
• Lines — every remaining numeric column becomes a line, up to 8. Select multiple numeric columns to get multiple lines. Columns that look like epoch timestamps are skipped as y-values.
• Rows are sorted by time automatically; ORDER BY your time column anyway.

Tips: cast text-typed numbers with ::DOUBLE, and alias columns (AS p95_ms) to label the lines.

Load-testing examples

The built-in examples assume aiolocust telemetry (see Load Testing). Two quirks matter:

• locust.current_users is a gauge stored in value_int — use coalesce(value_double, value_int).
• locust.client.duration histograms are cumulative (aggregation_temporality = 2): bounds and bucket_counts are JSON strings (cast with ::DOUBLE[]) and rates/percentiles must diff consecutive snapshots.

Example — concurrent users over time (gauge stored in value_int):

SELECT to_timestamp(ts_ns / 1e9) AS ts,
       coalesce(value_double, value_int) AS users
FROM metric_points
WHERE metric_name = 'locust.current_users'
ORDER BY ts_ns

The panel’s built-in examples also include a latency p95 vs time query (latest cumulative snapshot per 30s bucket, p95 read off the bucket counts) and a requests per second query — Prometheus-style: per-series counter increase (hist_count deltas, resets clamped to 0) summed inside each 30s bucket and divided by the bucket width, which stays smooth even when export intervals jitter. Open the SQL panel’s example dropdown to run them as-is.

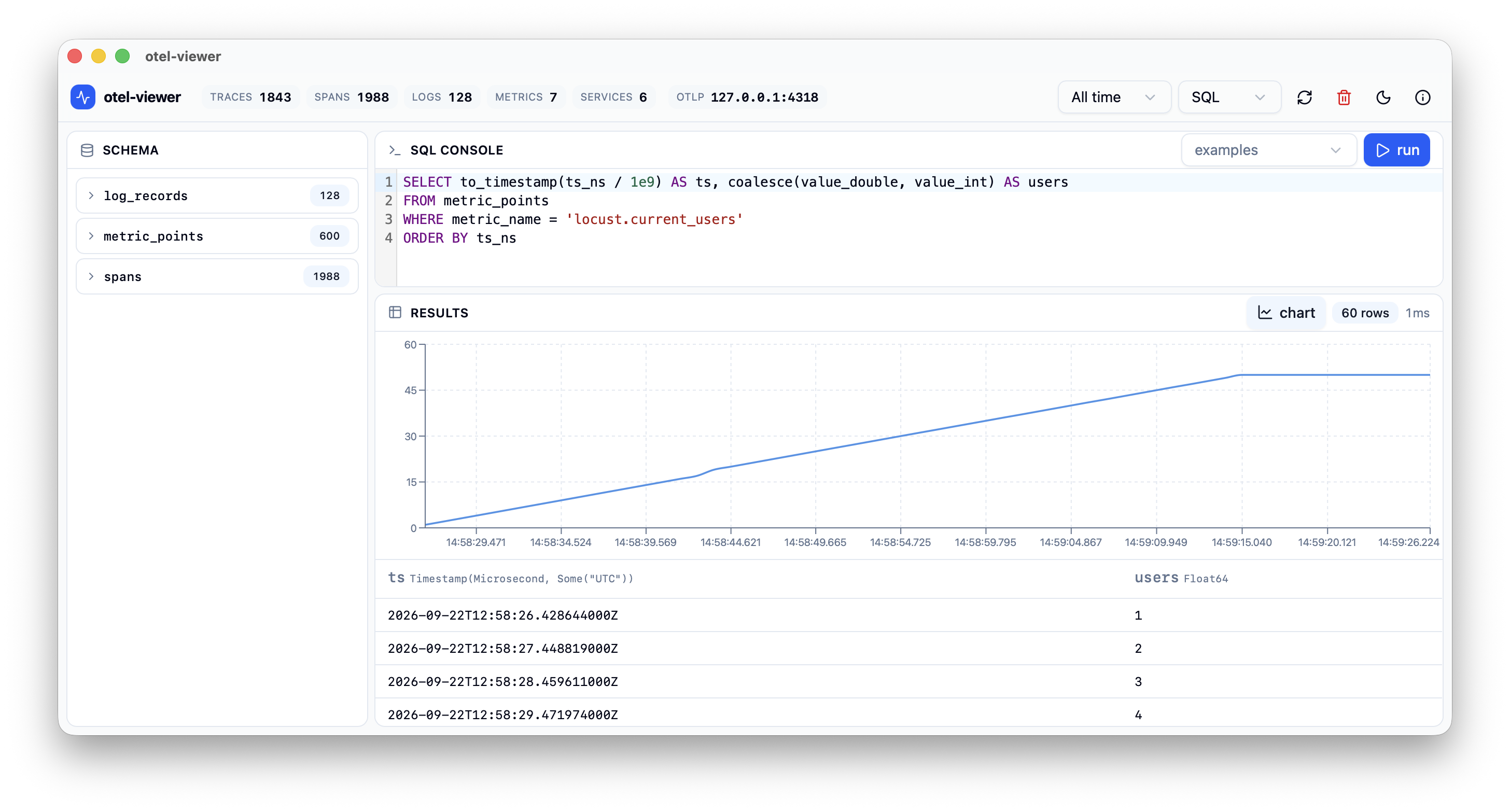

Users over time, charted automatically:

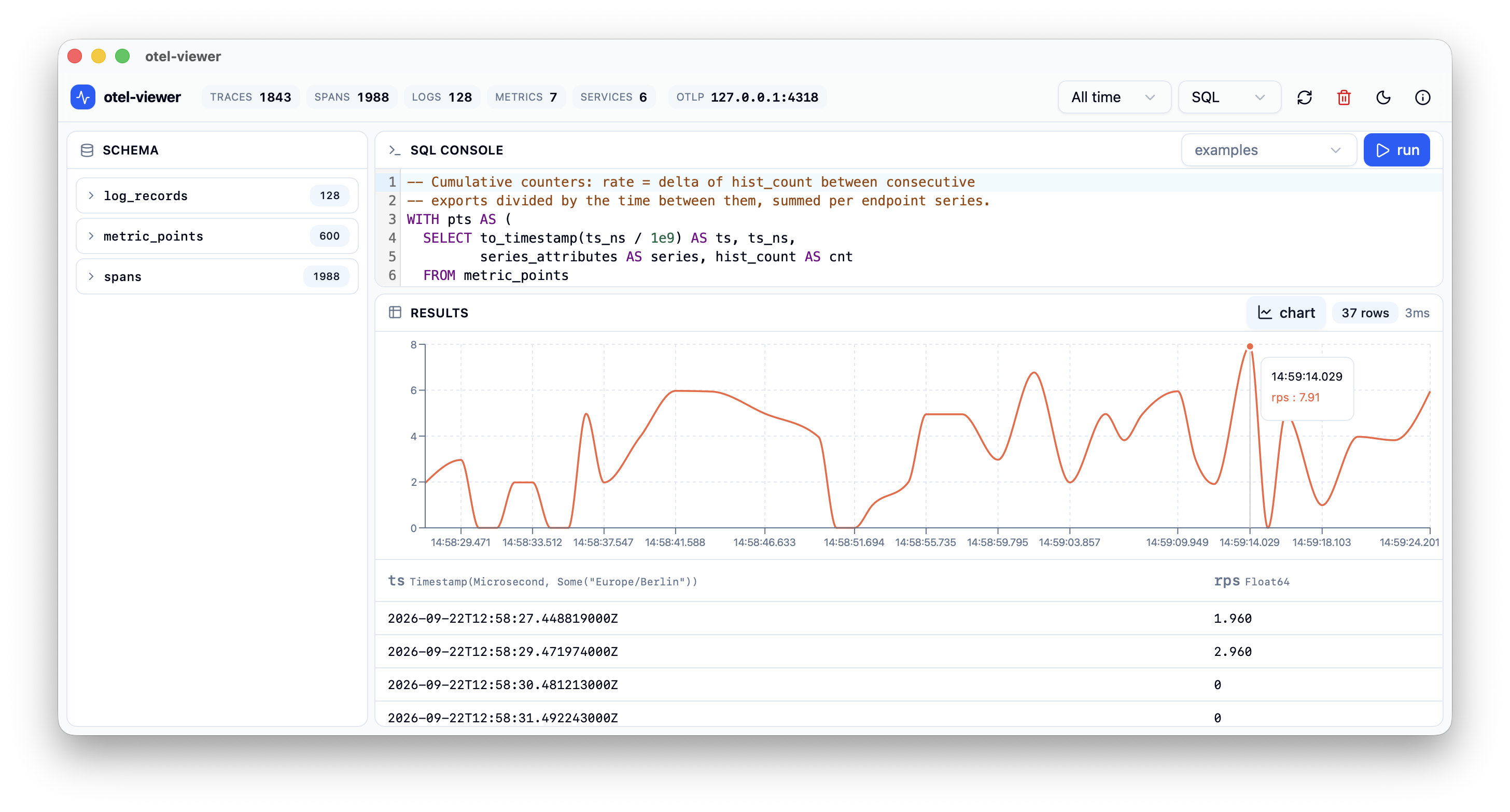

Requests per second from the cumulative histogram deltas:
